Rotorflight Jeti Setup

Instructions for Jeti Initial Radio and Configurator Setup, this is a generic setup using a Frsky transmitter with a jeti exbus receiver with a Rotorflight FC. This example shows a Nexus; however, the process is the same for any Rotorflight controller. Please choose the SBUS port related to your FC.

Wiring​

The simplest is to use a male to male servo lead to connect from the SBUS port on the FBL to the E1 port on your receiver.

Wiring

Transmitter Setup​

Once your receiver has been bound to the radio; visit the device explorer page.

DeviceExplorer

Select Receiver type​

Select the receiver

SelectRX

Set alternate pin​

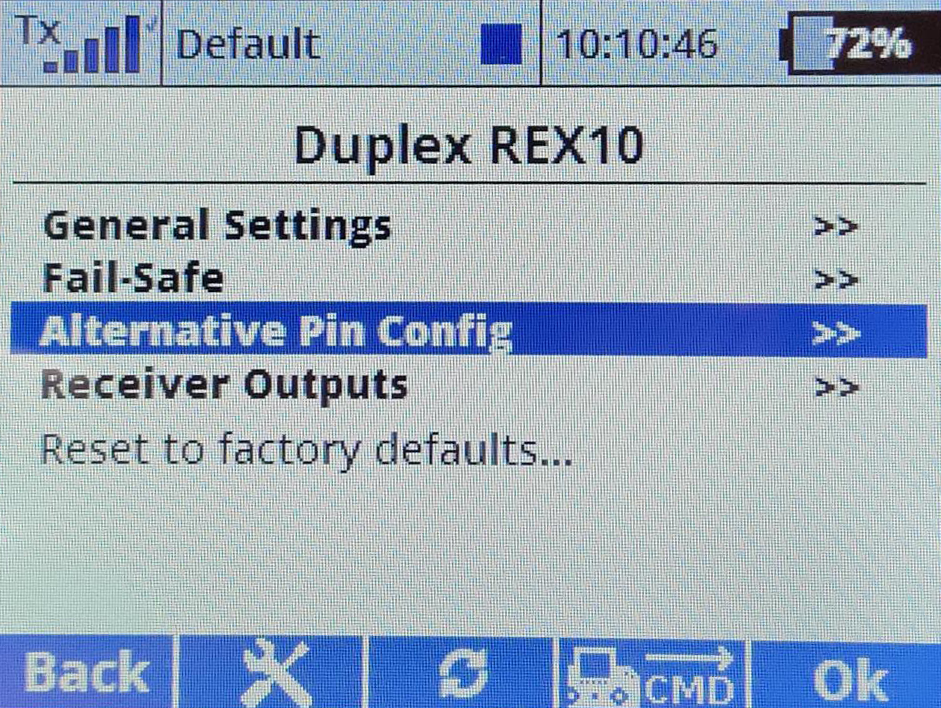

Select the alternative pin configuration

AltPin

Select ExBus pin​

  • Set the pin to use the ExBus protocol

Protocol

Configure the FC​

Next steps are to configure the fbl to receive the Exbus signal.

Setup UART ports​

Set the SBUS port to be used for serial rx communication

SerialRX

Setup Receiver​

Then visit the receiver page and configure as follows

ConfiguratorRXPage

Check sensors​

You should now have a control link and telemetry with all the sensors available on your radio.

ConfiguratorSensorsList
